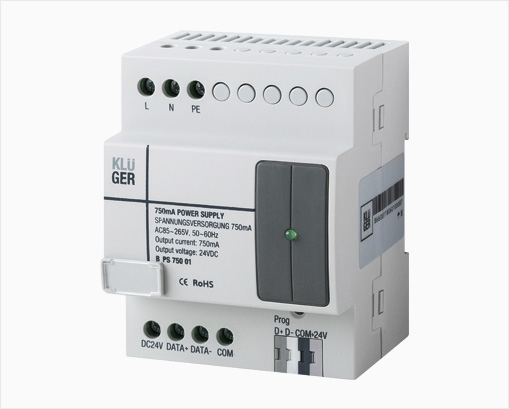

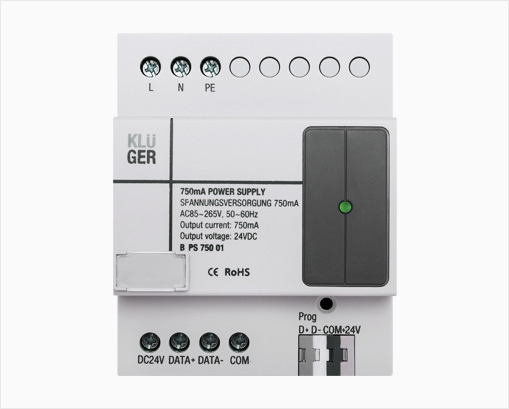

750mA POWER SUPPLY

  • Product Overview

The B-PS 750.01 is a power supply module, used to supply the Bus system with 24V DC. The module features over voltage and short circuit protection and can be installed on a 35mm din rail. The input voltage is AC275-85V, and the output current is 750mA.

The B-PS 750.01 has two inbuilt protective features that ensure a long, and hassle-free service life. The first of these features is the over voltage protection and the second is the short circuit protection. These precautions give the user complete peace of mind, that their Klüger smart home is protected and safeguarded.

Making use of Ripple Wave technology that uses less than 150mV, the current supplied to devices is more stable. This constant, unwavering current enables the connected devices to perform to their optimum capability, while ensuring peak performance and a long service life.

  • Technical Details

Input voltage: AC85-260V 50~60Hz
Output current: 750mA
Output voltage: DC24V
Output ripple wave: Less than 150mV
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 188g
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
Installation Position: Distribution Box (DB)
CE, RoHS, UL Approved

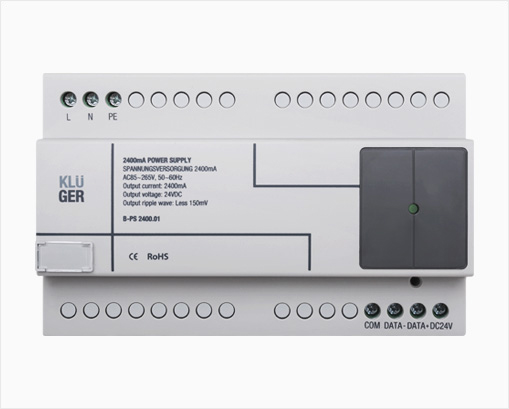

2400mA POWER SUPPLY

  • Product Overview

The B-PS 2400.01 is a power supply module, used to supply the Bus system with 24V DC. The module features over voltage and short circuit protection and can be installed on a 35mm din rail. The input voltage is AC275-85V, and the output current is 2400mA.

The B-PS 2400.01 has two inbuilt protective features that ensure a long, and hassle-free service life. The first of these features is the over voltage protection and the second is the short circuit protection. These precautions give the user complete peace of mind, that their Klüger smart home is protected and safeguarded.

Making use of Ripple Wave technology that uses less than 150mV, the current supplied to devices is more stable. This constant, unwavering current enables the connected devices to perform to their optimum capability, while ensuring peak performance and a long service life.

  • Technical Details

Input voltage: AC85-260V 50~60Hz
Output current: 2400mA
Output voltage: DC24V
Output ripple wave: Less than 150mV
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 144×90×66 (mm)
Net weight: 386.5g
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
Installation Position: Distribution Box (DB)
CE, RoHS, UL Approved
