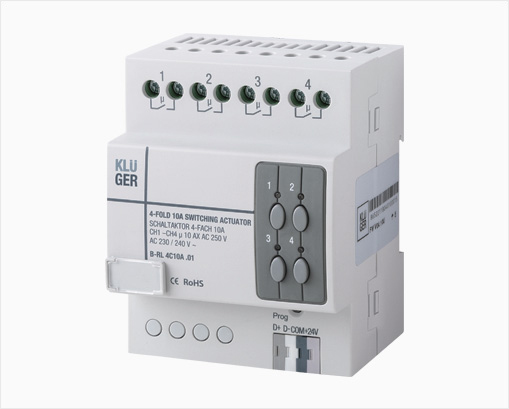

The B-RL 4C10.01 switching actuator can supply 4 channels with a current of 10A. The module is able to support diversified devices, and can be applied in to any solution which requires switching control.
Working power: 15~30V Class 2
Static Power consumption: 15mA/DC24V
Dynamic Power consumption: 40mA/DC24V
Output channel: 4CH/10A
Maximum current in each channel: 10A
Electronic life time of relay: >60000 (Resistive Load)
Protection: Connect a breaker in each channel
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Weight: 252g)
Housing material: Nylon, PC
Installation: 35mm Din Rail installation
Protection degree: IP20
Installation Position: Distribution box (DB)
CE, RoHS, UL Approved
