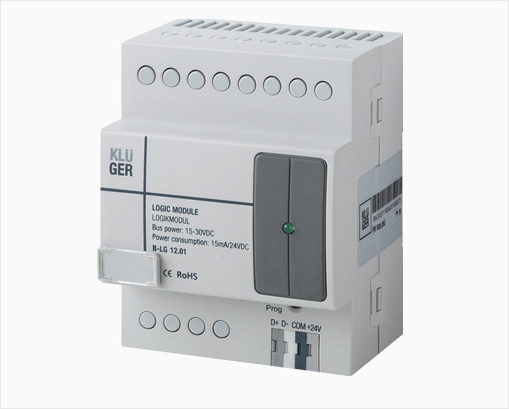

The B-LG12.01 provides centralised control over a range of targets. The module is capable of accepting 12 logic types, and has in total 960 logic blocks. The logic conditions enable the input of date and timing information, universal switch states, and external inputs.
With a massive 960 logic blocks, central control over a range of different devices/targets is possible. There are 12 logic groups in the B-LG12.01, inside each group there are 20 logic blocks, with each block having one of the four following logic types, AND, OR, NAND, and NOR. (Each logic table has 4 input pins and 1 output to control 20 targets.)
The logic conditions support the input of the year, date, week, and time via the real time clock. The logic table input conditions can also accept the status of the scene, sequence, channel, external input, panel, universal switch, external input value, external universal switch, security, and more.
Working voltage: 1DC15~30V
Bus Power consumption: 15mA / DC24V
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 121.5g
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL, CQC Approved
