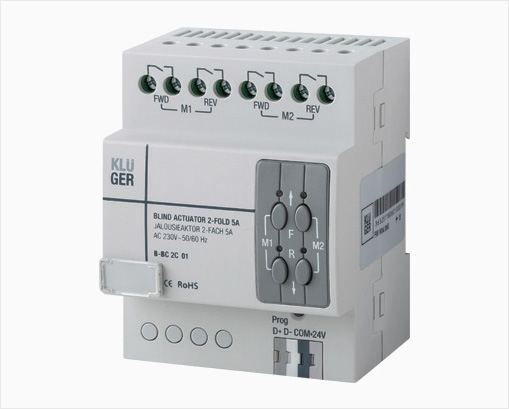

As a dedicated dual channel curtain controller, the B-BC 2C.01 is able to control each motor of a curtain controller. The unit also has a settable curtain running time, inching control, and hardware/software features that protect the motor and gearing systems.
The motor is protected from damage using an innovative motor lock function. When the motor is moving forward, the reverse direction will be locked, and vice versa. This guarantees a long hassle-free service life.
Manual control of the B-BC 2C.01 is possible by simply opening or closing the curtain or shutter to activate the system. The module can also be fully controlled by an Android or iOS device running the smart home app. If a user desires, the running time of the unit can be customised enabling the system to meet their exact requirements.
Working voltage: 1DC15~30V
Bus Power consumption: 35mA / DC24V
Max Current per channel: 5A
Relay life time: 60000 times
AC motor type: Single-phase capacitor
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 250g
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL, CQC Approved
