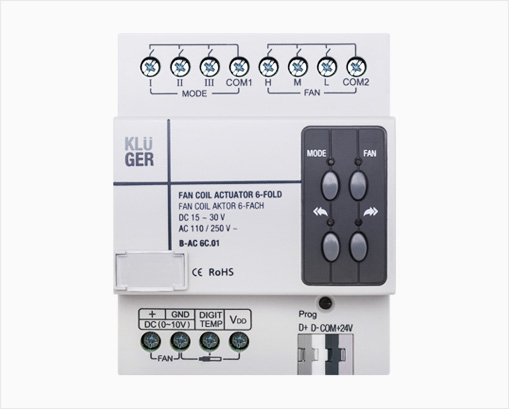

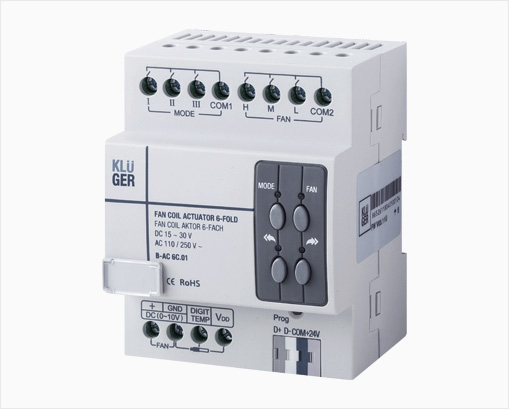

The B-AC6C.01 HVAC Controller is designed to control centralized HVAC systems. Capable of accepting environmental temperature input data, the module can optimize fan speed, mode, and temperature settings. The module can also be used in a master-slave mode, so that a single panel can control several HVAC modules.
This module is suitable for any residential, hospitality, or commercial building automation solution. With complete control of fan speed, and cooling/heating, users can enjoy a comfortable indoor experience without needing to trouble themselves over indoor environmental conditions.
Bus power supply: DC15-30V Class 2
Bus power consumption: 95mA/DC24V
Maximum current per CH: 5A for Modes, 2A for Fan speed
Relay life time: 60000 actuations
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 240.5(g)
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL Approved

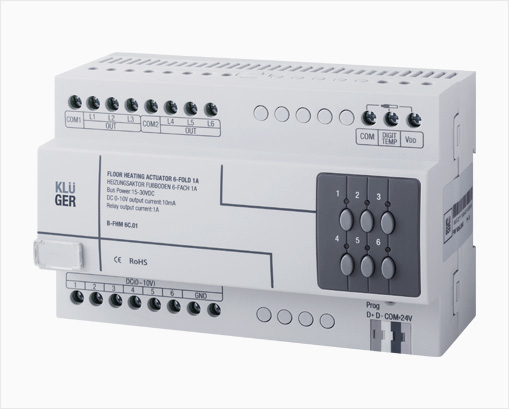

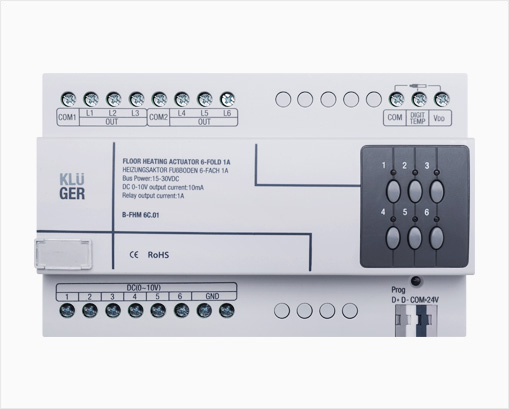

The B-FHM 6C.01 is a six-channel floor heating controller, with a built in PI controller. The module supports 13 digital temperature sensors, with an accuracy of 0.5 °C.
A maximum and minimum floor heating value can be set, which can be used to control the floor temperature in each room. The temperature is able to be adjusted from 5 centigrade to 40 centigrade, with an accuracy of 0.5 centigrade. The unit has inbuilt over heating protection, coupled with sensor failure detection. These features guarantee a long hassle-free service life.
With an innovative purge function, a hydronic floor heating system can be flushed allowing for easy servicing. The purge can either be controlled manually or set as a timed event.
Power supply: DC15~30V
Dynamic Bus power consumption: 150mA/DC24V
Static Bus power consumption: 30mA/DC24V
Output channels: 6
DC 0-10V output current: 10mA
Relay output current: 1A
Relay unit life time: 5,000,000 times
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 144×90×66 (mm)
Net weight: 284.7g
Housing material: Nylon, PC
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL Approved
