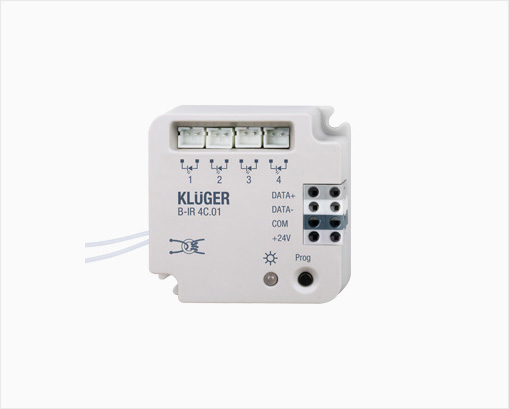

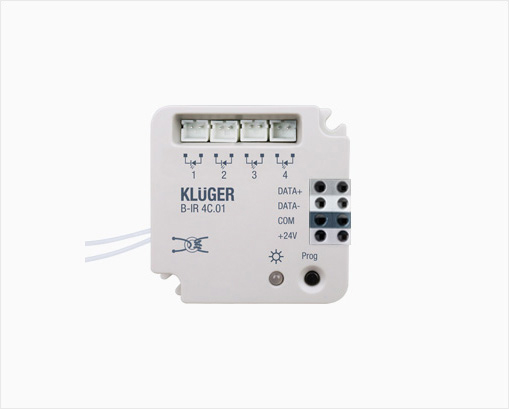

B-IR 4C.01 is a -4fold Infrared emitter, which can simultaneously emit IR codes from each of the 4 outputs. The IR codes are available in the IR database or learnt with the Klüger IR Learner and saved in the Klüger Programming Software. The IR Emitter can be used to control IR based equipment such as AC, TV, Fans and so on.
Bus power supply: DC12-30V
Bus power consumption: 10mA/DC24V
Sending carrier wave frequency: 38 KHz
IR control distance: 6m
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 45×45×16(mm)
Net weight: 58(g)
Housing material: Flame retardant ABS
Installation: Screw fix installation
Protection rating: IP20
CE, RoHS, UL, CQC Approved
