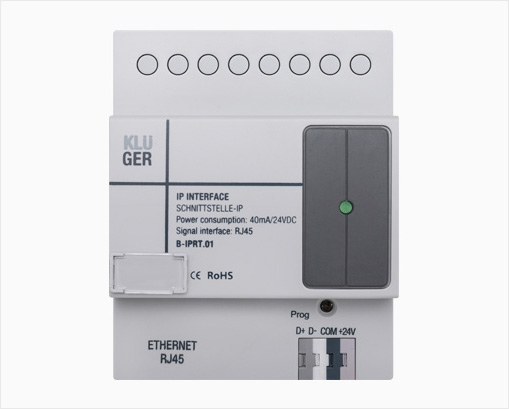

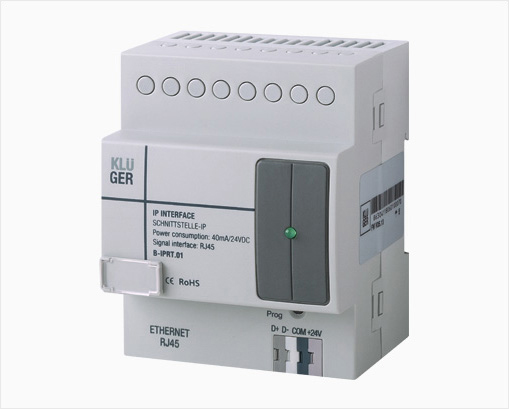

The B-IPRT.01 module enables gateway communication between the Klüger bus and an Ethernet connection. This gateway enables a remote server connection, which then allows remote programming and system configuration from anywhere in the world. The access can also be localised to the devices directly linked to the Ethernet system, this option enables users to choose the connection that best fits their needs.
The gateway allows smart phones & tablets to control the smart home system. Both iOS and Android platforms are supported allowing users to control their automation system from anywhere in the world.
Default IP Address: 192.168.10.250
Port: 6000
Working voltage: DC12~30V
Bus power consumption: 40mA/DC24V
Signal interface: Klüger Bus, RJ45
RJ45 connection: RJ45 Network Interface
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 124g
Housing material: Nylon
Installation: 35mm DIN rail installation
Protection rating: IP20
CE, RoHS, UL, CQC Approved
