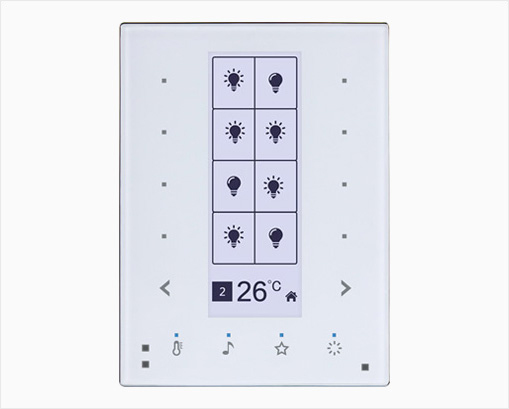

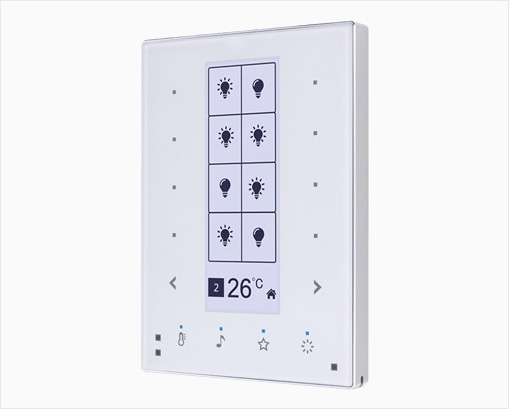

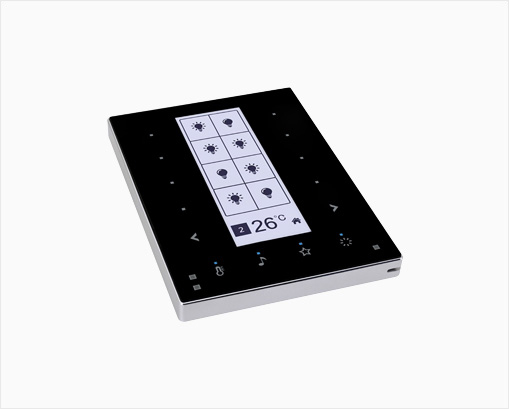

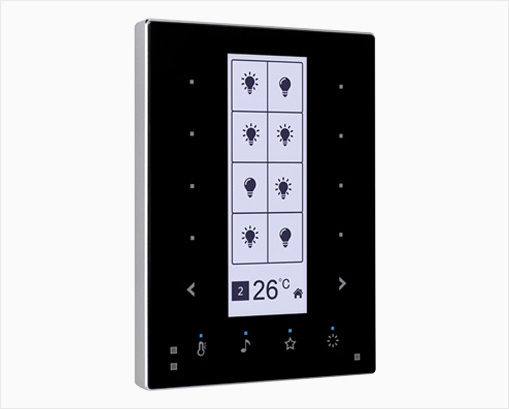

With a large ultra-clear energy efficient customizable LCD screen, messages, device status, and percentage information can all be displayed and effortlessly known. This enables a user to find the key system information they need quickly effortlessly. The fascia colour, material, and appearance of the B-TPL WH.01 can also be customized allowing a user to tailor panel to their exact specification.
Each of the seven different button pages can be controlled via any one of the 8 buttons, and each button can control 99 targets. In total the unit can control over 3000 targets giving the user unparalleled command and control over the system.
Every page of the DLP can be completely tailored by a user, from fonts, languages, icons every feature and aspect can be customized. In addition to this it is also possible for the panel to display messages, the status of targets. has an energy efficient customizable LCD screen, with LED button status indication. Messages, device status, and percentage information can all be displayed; this enables a user to find the key system information effortlessly. The fascia colour, material, and appearance can also be customized allowing a user to tailor panel to their personal requirements.
Working voltage: DC12~30V (From B-PI US.01)
Power consumption: 45mA/24VDC
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
LCD resolution: 240x80 px
Dimensions: 86×116.5×10.5 (mm)
Net weight: 129g
Housing material: Glass, PC, ABS, Aluminum
Installation: Wall box
Protection rating: IP20
CE, RoHS, UL Approved
