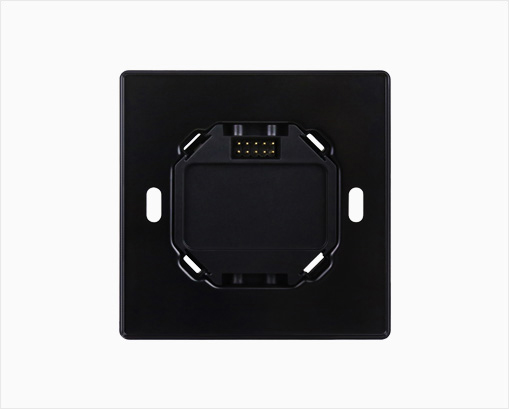

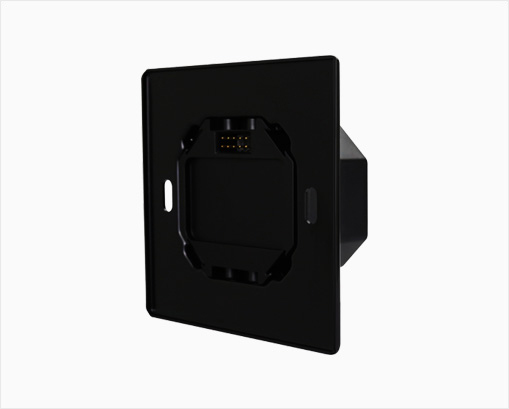

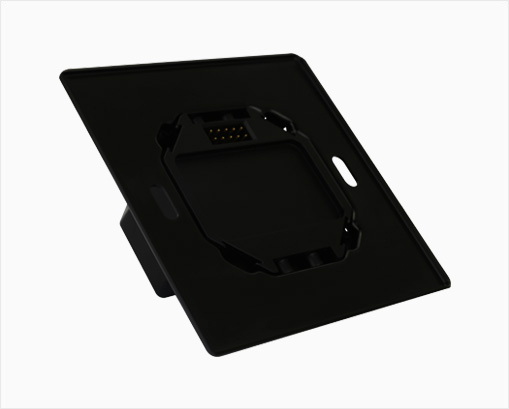

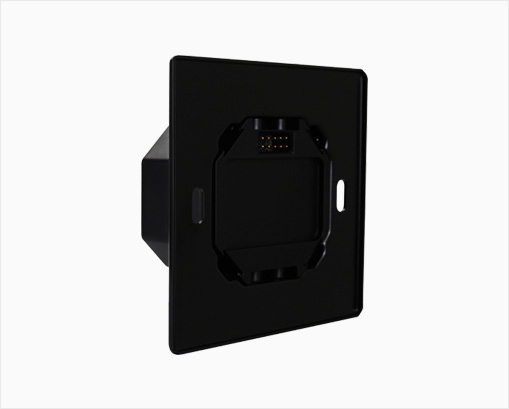

The B-PI EU.01 is a BUS coupler for the panels and keypads, with a backing plate designed especially for Europe. The coupler can be mounted on any wall, and its colour coded plugs dramatically simplify the installation process.
The B-PI EU.01 is a new 4th generation UK standard BUS panel coupler, it is able to supply DC power and communication signals to Klüger panels and sensors. The interface is specifically designed for the UK market as it has a backing plate matched to standard UK switch plates. This allows simple installation, with minimal modification to the exiting mount or wall.
The slip gap design allows a user to quickly and easily separate the panel from the power interface. This minimizes installation time, and makes user servicing a possibility as no specialist tools or equipment are required.
Power supply: DC12－30V
Communication interface: Klüger BUS
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 80×80×28.5 (mm)
Net weight: 96(g)
Housing material: Steel, ABS
Installation: EU wall box
Protection rating: IP20
CE, RoHS, UL, CQC Approved

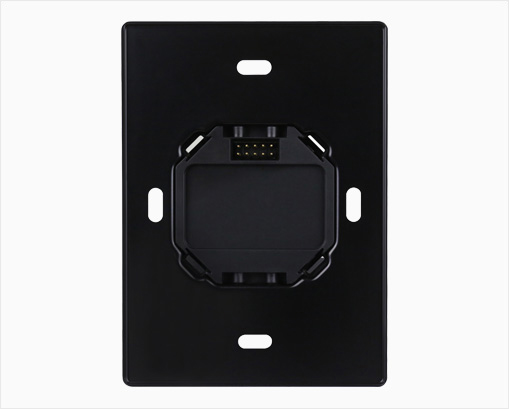

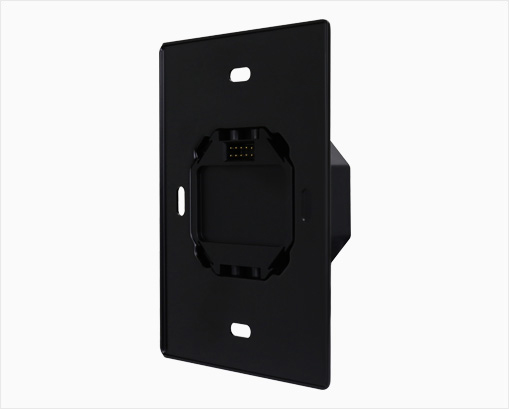

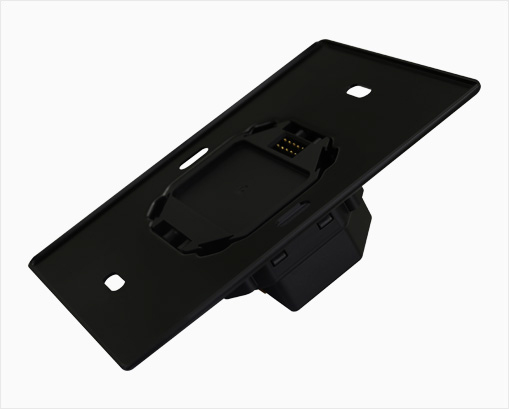

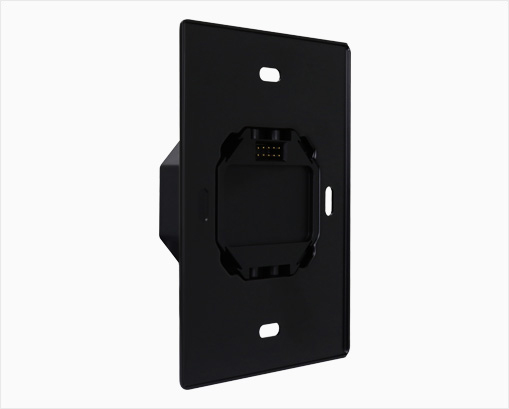

The B-PI US.01 is a BUS coupler for the panels and keypads, with a backing plate designed especially for the United States. The coupler can be mounted on any wall, and its colour coded plugs dramatically simplify the installation process.
The B-PI US.01 is a new 4th generation US standard BUS panel coupler, it is able to supply DC power and communication signals to Klüger panels and sensors. The interface is specifically designed for the US market as it has a backing plate matched to standard US switch plates. This allows simple installation, with minimal modification to the exiting mount or wall.
The slip gap design allows a user to quickly and easily separate the panel from the power interface. This minimizes installation time, and makes user servicing a possibility as no specialist tools or equipment are required.
Power supply: DC12－30V
Communication interface: Klüger BUS
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 80x110.5×28.5 (mm)
Net weight: 121.5(g)
Housing material: Steel, ABS
Installation: US/EU wall box
Protection rating: IP20
CE, RoHS, UL, CQC Approved
