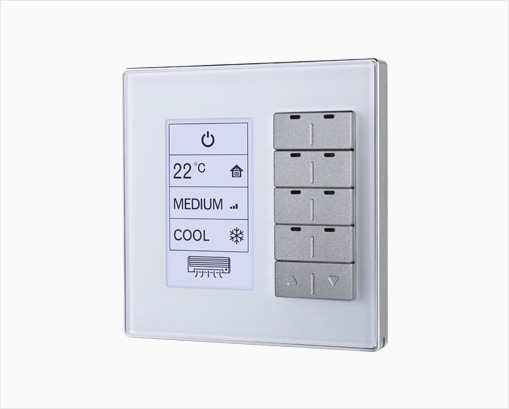

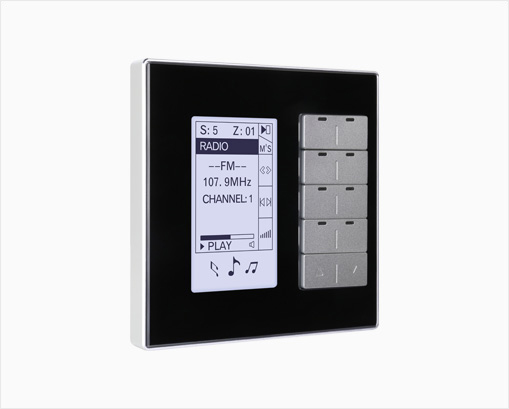

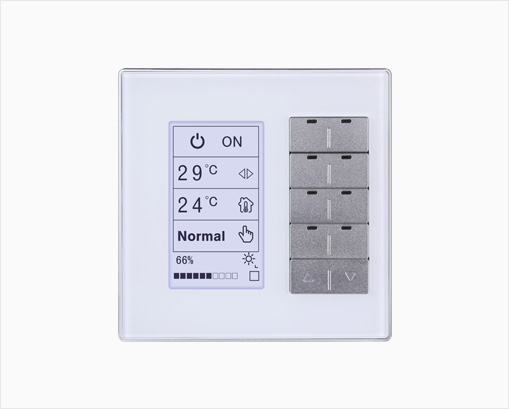

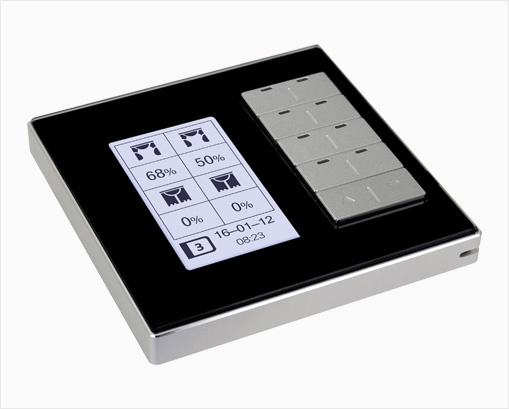

The revolutionary B-S8P WH.01 has an energy efficient customizable LCD screen, with LED button status indication. Messages, device status, and percentage information can all be displayed; this enables a user to find the key system information effortlessly. The fascia colour, material, and appearance can also be customized allowing a user to tailor panel to their personal requirements.
TThe B-S8P WH.01 also has a standard EU sized backing plate allowing simple installation, with minimal modification to the exiting mount or wall. The panel can also manage differing types of control, these controls can include scenes, GPRS, sequences, time switches, universal switches, single channel adjustment, broadcast scenes, and broadcast channels.
BUS power supply (from B-PI EU.01): DC12-30V
BUS power consumption: 30mA/DC24V
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
LCD resolution: 160x80 px
Dimensions: 86×86×10.5 (mm)
Net weight: 108.5(g)
Housing material: Glass/Aluminum, ABS, PC
Installation: EU wall box
Protection rating: IP20
CE, RoHS, UL Approved
