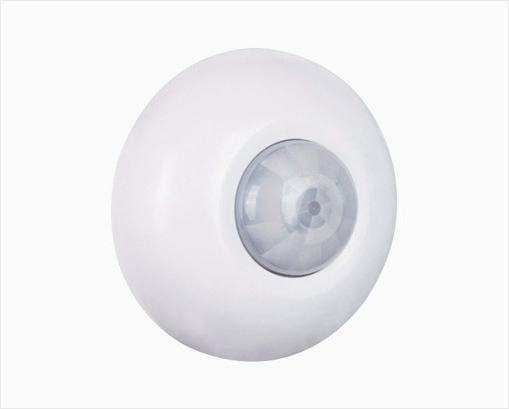

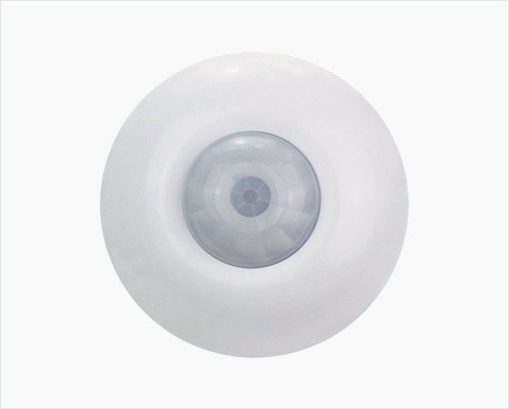

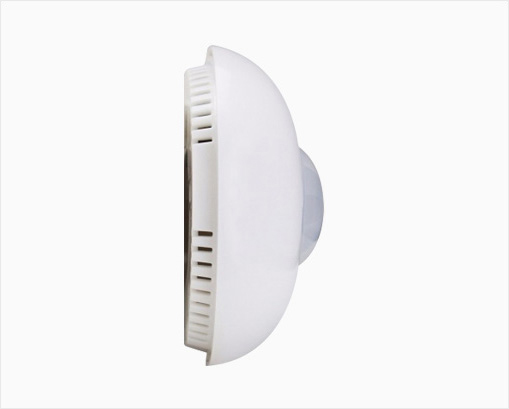

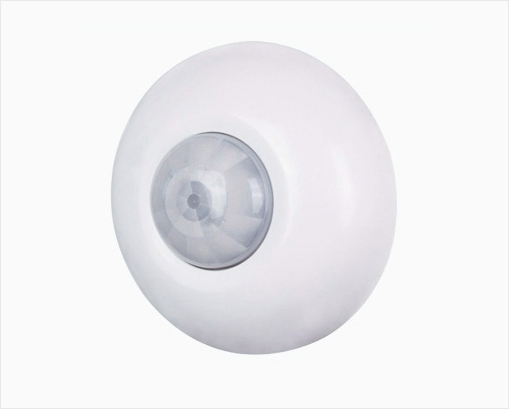

The B-CM 7S.01 is capable of detecting temperature, Lux, and motion. The functionality of this module is further extended by its ability to control multiple targets, accept 2 dry contact inputs, and 2 universal switches. The sensor is capable of providing 7 functions in one compact, and easy to install package. It can detect temperature, Lux, motion and dry contact, and even combine sensor information. This combination approach is employed by the module to extend the detection range of the motion and ultrasound sensors.
With 24 logic blocks users can create a diverse range of applications, which meet the needs of multiple situations. A common application often created is for room management, this allows the system to know if the room is occupied or vacant. If a sensor in the room detects movement, it can send a command to the Klüger bus to activate the HVAC, turn on the TV, play Music, etc., to automatically create a comfortable and relaxed atmosphere.
Working voltage: DC18~30V
Power consumption: 25mA / DC24V
Temperature detection range: -20°C~60°C
Illumination detection range: 0~5000LUX
Humidity detection range: 20~95％RH
Sensor Detection range: 8m (Installation height:3m)
Working temperature: -5°C~+45°C
Working relative humidity: ＜90％
Storage temperature: -20°C~+60°C
Storage relative humidity: ＜93％
Dimension: 84.5mm×37.5mm
Weight: 55.4g
Housing material: ABS
Installation: Ceiling mount
Protection degree: IP20
CE, RoHS, UL, CQC Approved
