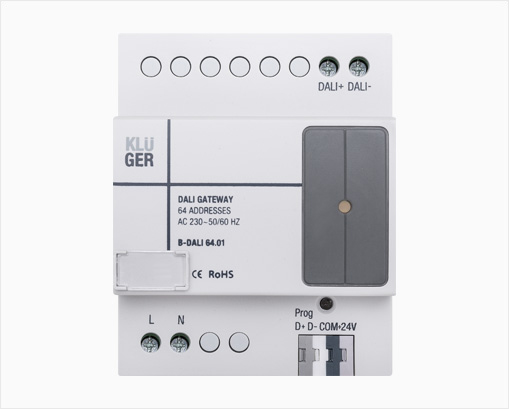

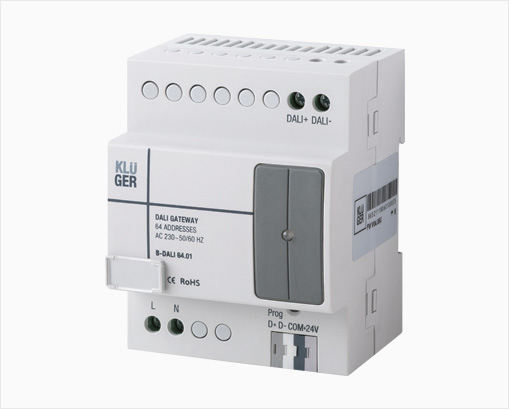

The B-DALI 64.01 is a 64 channel DALI controller, with built in DALI power supply and single DALI bus. The unit can also support 64 DALI ballasts, and scene control. The scene control allows the creation of 16 areas, with each area having 16 scenes.
Up to 64 DALI devices can be operated for switching and dimming in 16 areas, every DALI device is designated an address automatically. This automatic identification saves time and enables a user to install the system faster.
Working voltage: DC12~30V
Bus power consumption: 15mA/DC24V
Signal interface: Klüger Bus, DALI
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 72×90×66 (mm)
Net weight: 379.5g
Housing material: Nylon
Installation: 35mm DIN rail installation
Protection degree: IP20
CE, RoHS, UL Approved
