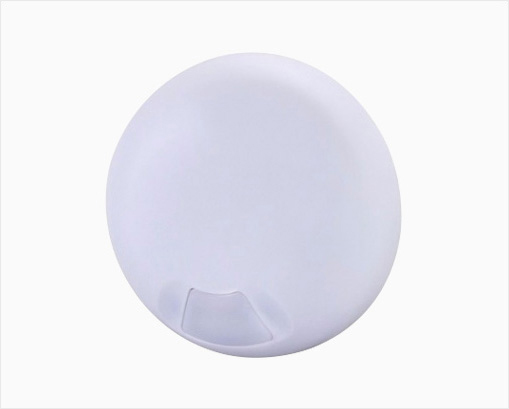

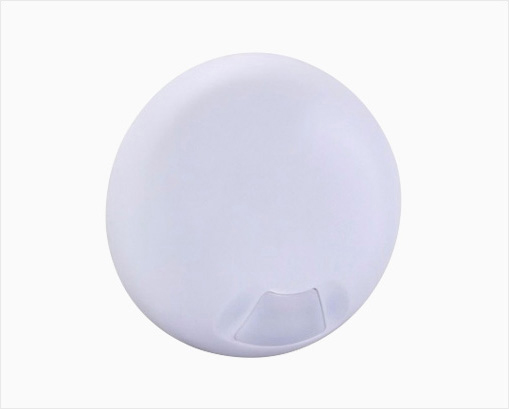

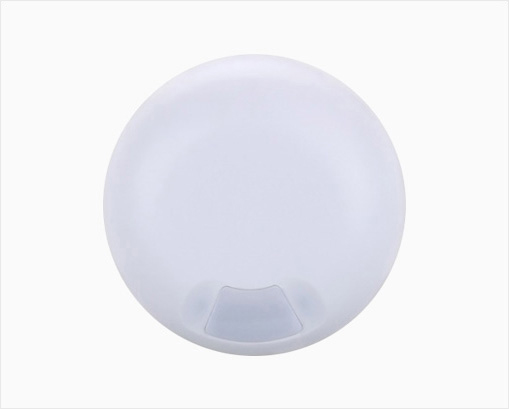

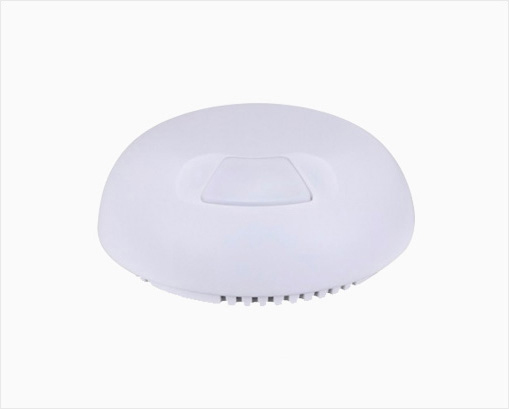

The B-CM MS.01 Indoor Doppler sensor includes LUX sensor, microwave sensor, humidity sensor, temperature sensor, dry contact and universal switch.
With 24 logic blocks users can create a diverse range of applications, which meet the needs of multiple situations. A common application often created is for room management, this allows the system to know if the room is occupied or vacant. If a sensor in the room detects movement, it can send a command to the Klüger bus to activate the HVAC, turn on the TV, play Music, etc., to automatically create a comfortable and relaxed atmosphere.
Working voltage: DC12~30V
Power consumption: 32mA / DC24V
Temperature detection range: -40°C~60°C
Illumination detection range: 0~5000LUX
Humidity detection range: 20~95％RH
Microwave detection range: H:7m D:12m L:6m
Working temperature: -20°C~+45°C
Working relative humidity: ＜90％
Storage temperature: -20°C~+60°C
Storage relative humidity: ＜93％
Dimension: 84.5mm×32mm
Weight: 67.5g
Housing material: ABS
Installation: Ceiling mount
Protection degree: IP20
CE, RoHS, UL, CQC Approved
