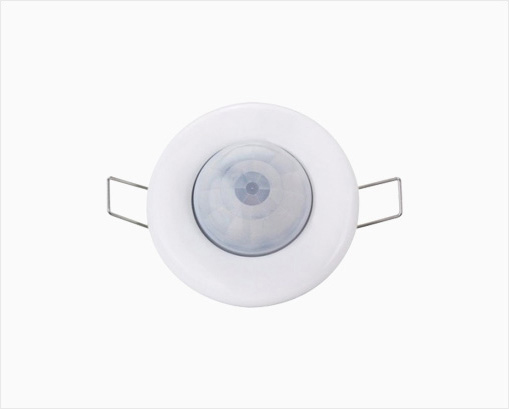

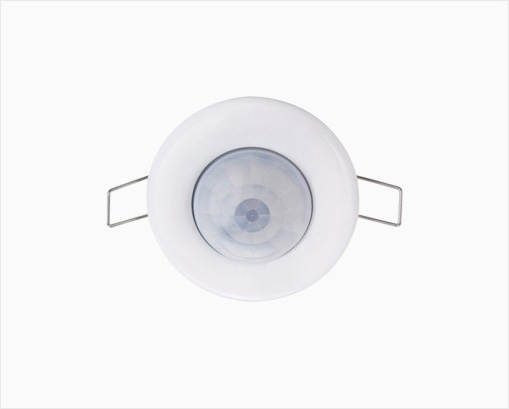

The ceiling mounted B-CM PIR.01 is a PIR sensor and Lux sensor, the module supports 2 logic inputs and has 24 logic blocks with each block having 20 output targets. Both OR & AND logic states can be output and each state has a universal switch and an auto shutoff function.

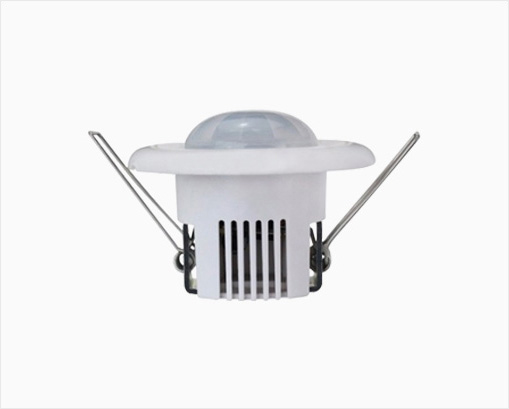

The B-CM PIR.01 is a dedicated ceiling mounted PIR sensor (range 6m), and Lux sensor (500-0 Lux) with adjustable sensitivity. The unit is used to detect movement and transmit a signal to an output target enabling it to activate. Installation can be quickly and simply achieved via its screw or spring bracket.
Dual logic inputs can be used, giving immense versatility to end users. Coupled with this the unit has 24 logic blocks, with each block having 20 output targets. The output logic is OR & AND, with each logic state also having a universal switch and an auto shutoff function.
Working voltage: DC18~30V
Power consumption: 20mA / DC24V
PIR sensing range in diameter: 6m (Installation Height: 3m)
Range for LUX Sensor: 0-500lux
Working temperature: -5°C~45°C
Working relative humidity: Up to 90%
Storage temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 63(Diameter)×46.6(mm)
Net weight: 91(g)
Housing material: Infrared lens, ABS
Installation: Ceiling mount
Protection degree: IP20
CE, RoHS, UL, CQC Approved
