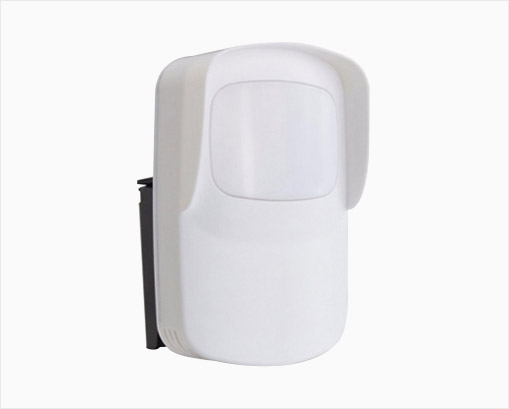

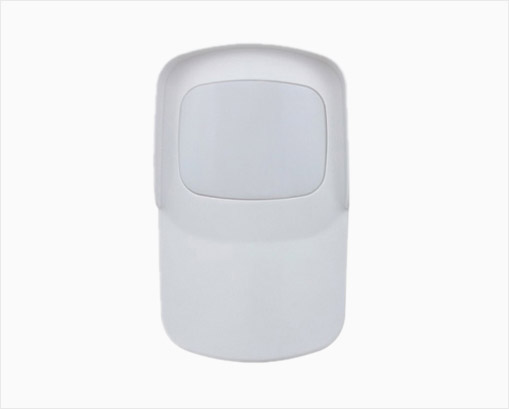

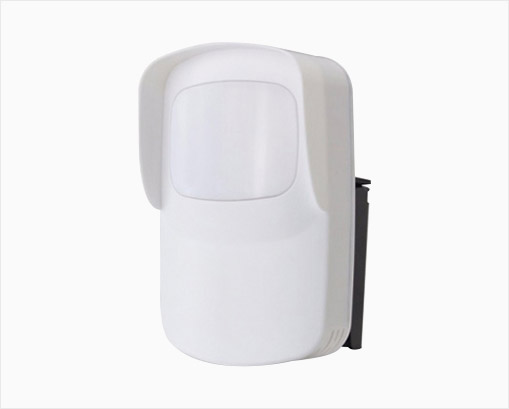

Outdoor Doppler sensor includes LUX sensor, microwave sensor, humidity sensor, temperature sensor , dry contact, universal switch . It can satisfy different requirement according to different logics.
Working voltage: DC12~30V
Power consumption: 32mA / DC24V
Temperature detection range: -40°C~60°C
Illumination detection range: 0~5000LUX
Humidity detection range: 20~95％RH
Microwave detection range: H:7m D:12m L:6m
Working temperature: -20°C~+45°C
Working relative humidity: ＜90％
Storage temperature: -20°C~+60°C
Storage relative humidity: ＜93％
Dimension : 126mm×78mm×42mm
Weight : 360g
Housing material: ABS

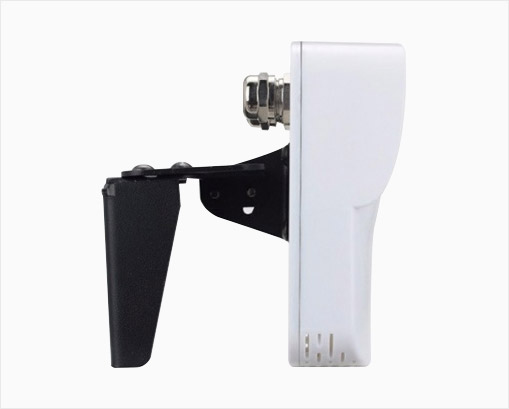

Installation: Screw fixation
Protection degree: IP20
CE, RoHS, UL, CQC Approved
