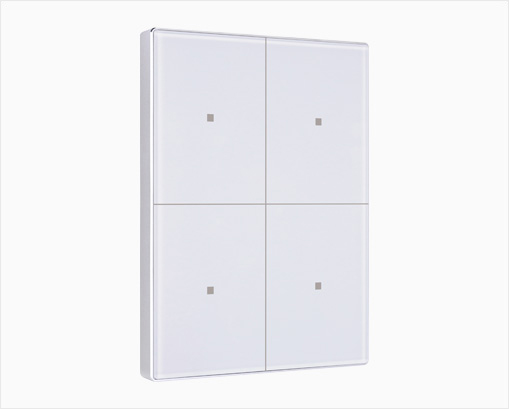

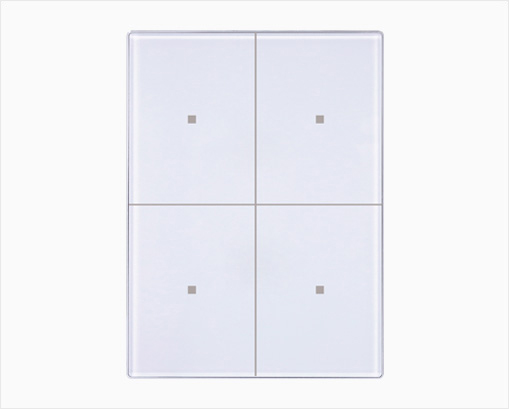

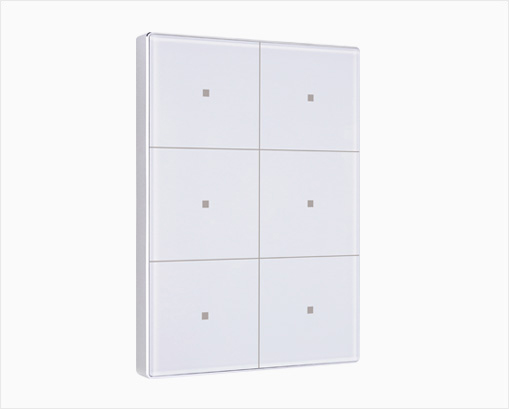

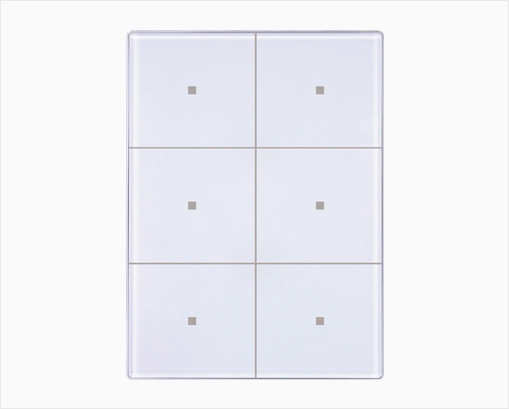

The B-EDL 6/4/3/2/1US.01 has a seamless glass finish, and a backing plate specifically designed for the United States. The module can control multiple targets via its capacitive buttons, which have a customizable RGB LED backlight.
With a continuously smooth and uninterrupted glass finish the B-EDL 6/4/3/2/1US.01 sets a new standard in functional design. Each button in the series has a range of control options. There are in total 8 different ways to press each button. This means that although the units have only 1 to 6 physical buttons, because each button has various control methods countless devices can be managed.
Each button is capable of controlling multiple targets, these targets can include scenes, sequences, time switches, universal switches, single channel adjustment, broadcast scenes, broadcast channels, and a host of other functions. In essence the unit can control almost any home automation device, with a simple touch of a button.
Power Supply: DC12-30V
Power consumption (from B-PI US.01): 20mA/DC24V
Working Temperature: -5°C~45°C
Working relative Humidity: Up to 90%
Storage Temperature: -20°C~+60°C
Storage relative humidity: Up to 93%
Dimensions: 86×116.5×10.5 (mm)
Weight: B-EDL 2US.01: 137.5(g)
B-EDL 4US.01: 143(g)
B-EDL 6US.01: 144(g)
Housing material: Glass
Installation: US wall box
Protection rating: IP20
CE, RoHS, UL Approved
